Wireless Video Transmitter Receiver 5.8GHz 32CH AV TX RX

Wireless Video Transmitter Receiver TX5820 V2 5.8GHz 32CH AV TX RX

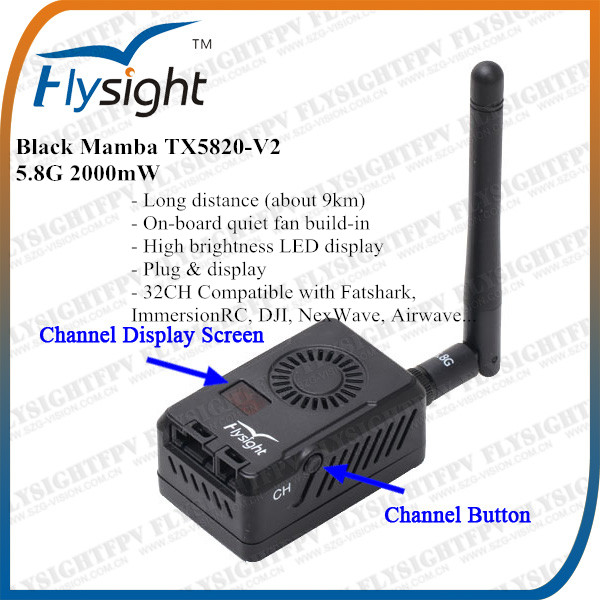

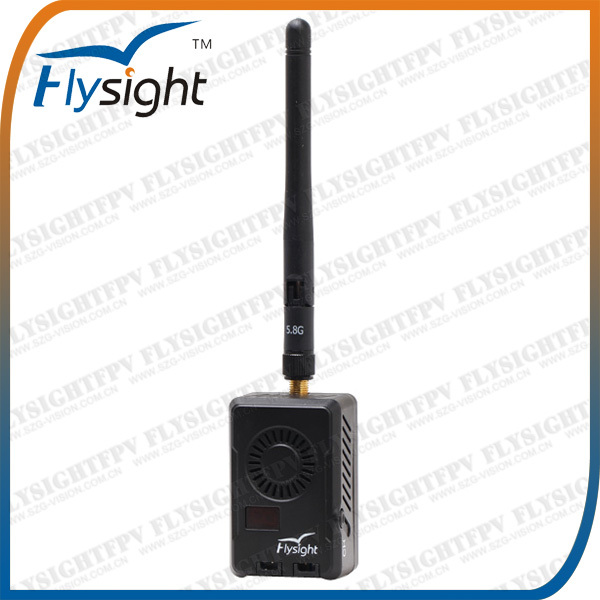

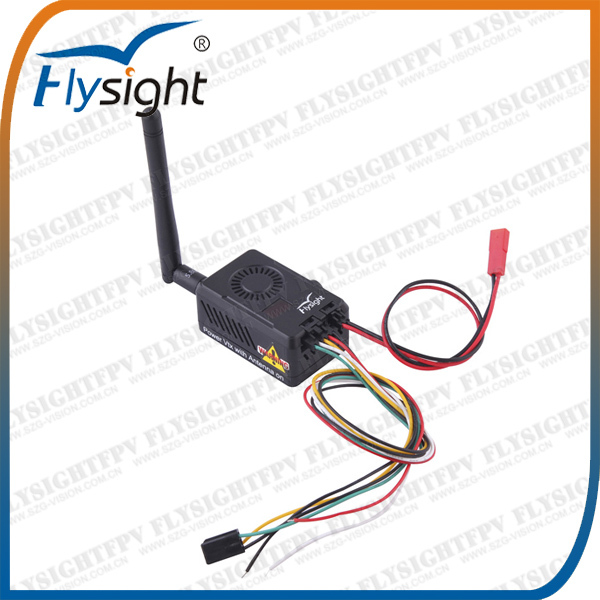

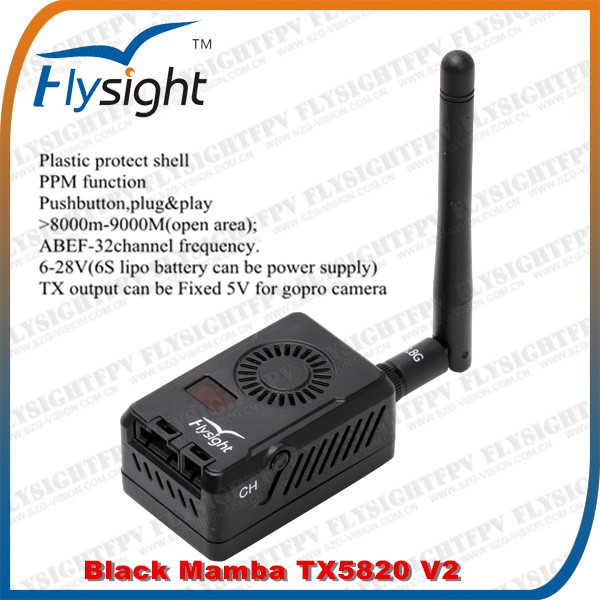

The mini 5.8G 2000mW transmitter Black Mamba TX5820 V2 would make your fly to 8000-9000M away with only the stock antenna, advanced build-in regulator offers this transmitter very wide power input range.

Specifications of 5.8G 2000mW AV wireless transmitter:

PPM function to change channel easily by RC controller

Band Options:ABEF-32channel frequency

Transmitting distance: >8000m(open area)

Frequency control: built-in frequency and phase lock loop

ANT connector: SMA and RPSMA optional

AV input: analog AV signal input

Output voltage:5V/12V

Current supply: 800-900mA

Size:  55*35*27mm

Net weight: 52g(no cable and antenna)

 Note:antennas must be attached before powering on.

Receiver RC306:

Receiving frequency:5665-5945MHz;32CH

Receiving sensitivity:-90dBm

Frequency control:built-in frequency and phase lock loop

Double lines AV output:analog AV signal output

Antenna connector:SMA(Inside the needle)

Power supply voltage: 6-16V

Supply current: 60mA

Dimension: 55*40*15mm(aluminium alloy extrusion profiles)

Note: the av cable uses 3.5mm plug on the receiver RC306.
